รายละเอียด
Standard Gate Valve Lockout SGVL11-17 (Size from 1″-25″)

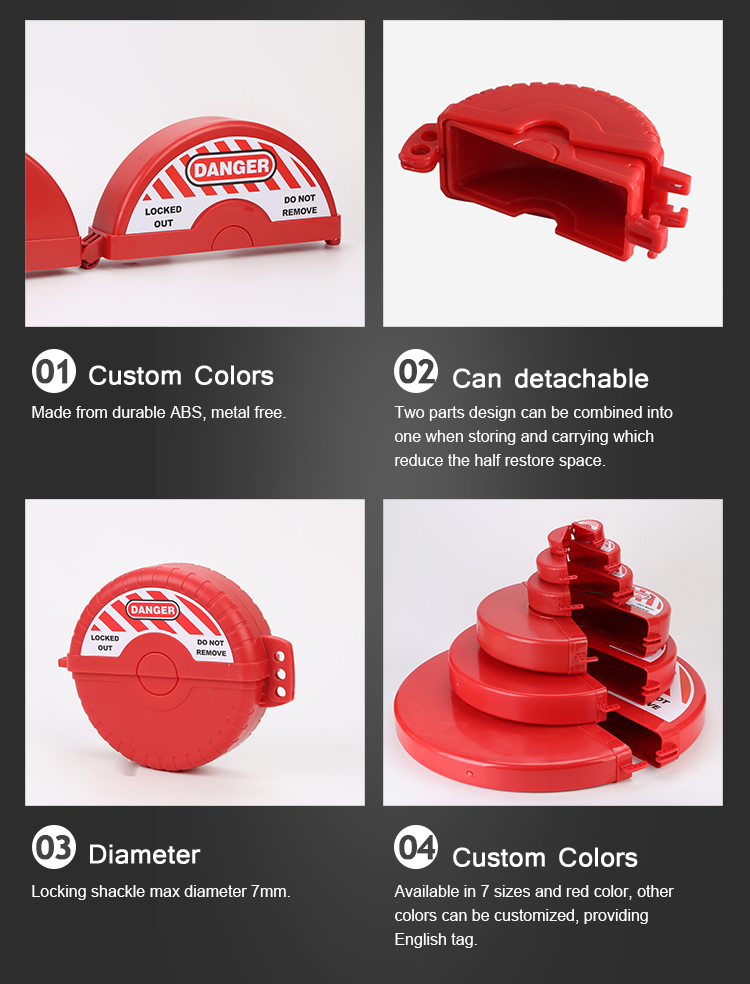

a) Made from durable ABS, withstand temperature from -20℃ to +90℃, metal free.

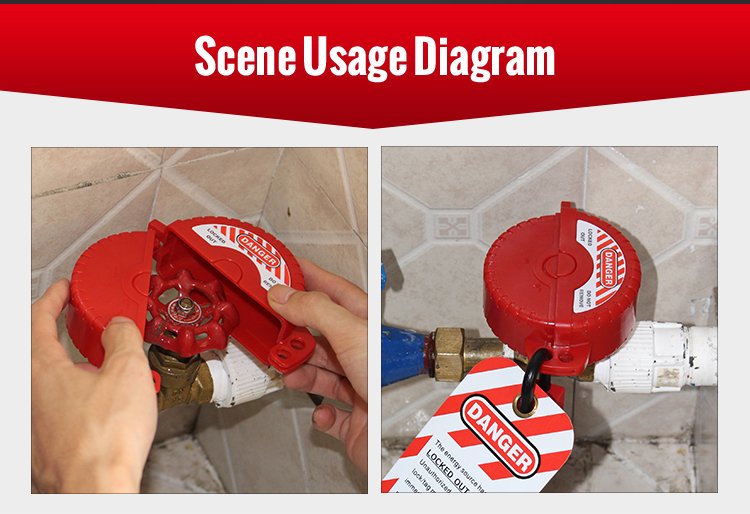

b) Once locked, it covers around the hand wheel and prevent the valve wheel from being turned.
c) Two parts design can be combined into one when storing and carrying which reduce the half restore space.
d) Accept up to 2 padlocks, locking shackle max diameter 8mm.

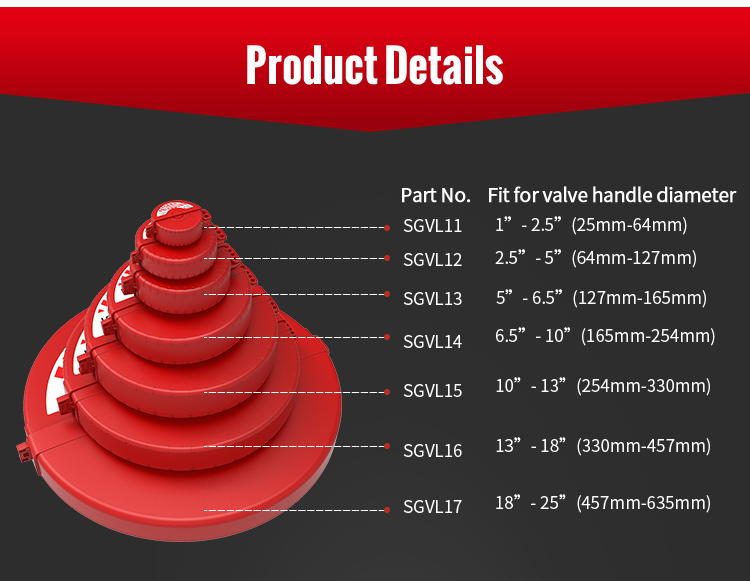

e) Available in 7 sizes and red color, other colors can be customized, providing English tag.

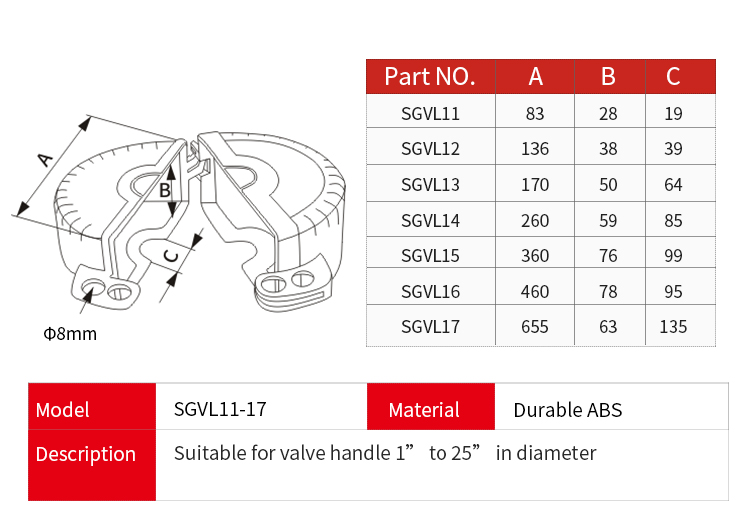

| Part No. | Description | A | B | C |
| SGVL11 | Suitable for valve handle 1” to 2 1/2” in diameter | 83 | 28 | 19 |
| SGVL12 | Suitable for valve handle 2 1/2” to 5” in diameter | 136 | 38 | 39 |
| SGVL13 | Suitable for valve handle 5” to 6 1/2” in diameter | 170 | 50 | 64 |
| SGVL14 | Suitable for valve handle 6 1/2” to 10” in diameter | 260 | 59 | 85 |
| SGVL15 | Suitable for valve handle 10” to 13” in diameter | 360 | 76 | 99 |
| SGVL16 | Suitable for valve handle 13” to 18” in diameter | 460 | 78 | 95 |
| SGVL17 | Suitable for valve handle 18” to 25” in diameter | 655 | 63 | 135 |
